Appendix A: Advanced Operations for Elevation View Screen
Editing Controls

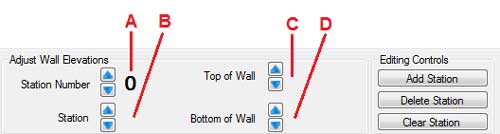

The height of the wall at each station can be adjusted within the working table but if the user wants to make changes in block course increments, they can use the Advanced Operation: Editing Controls to adjust the height of the wall at a particular station.
- Choose a Station to edit.
- The running length of the station point can be adjusted in half block increments.
- Increase or decrease the top of wall elevation as required.
- Increase or decrease the bottom of wall elevation as required.
Advanced Operation is also where the user can add, remove or clear all the station. Simply click on the desired function and input the station number of the one to add or delete.
